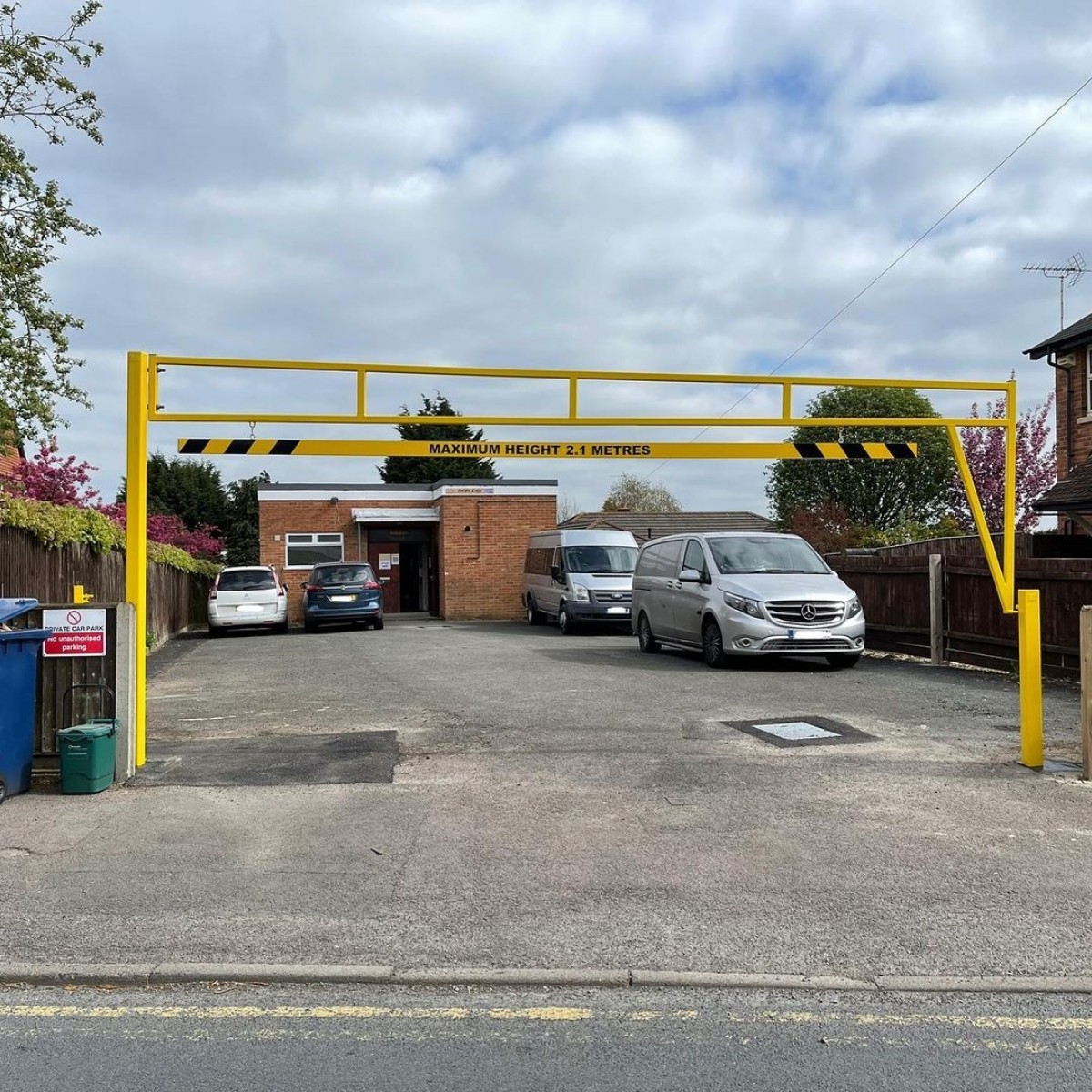

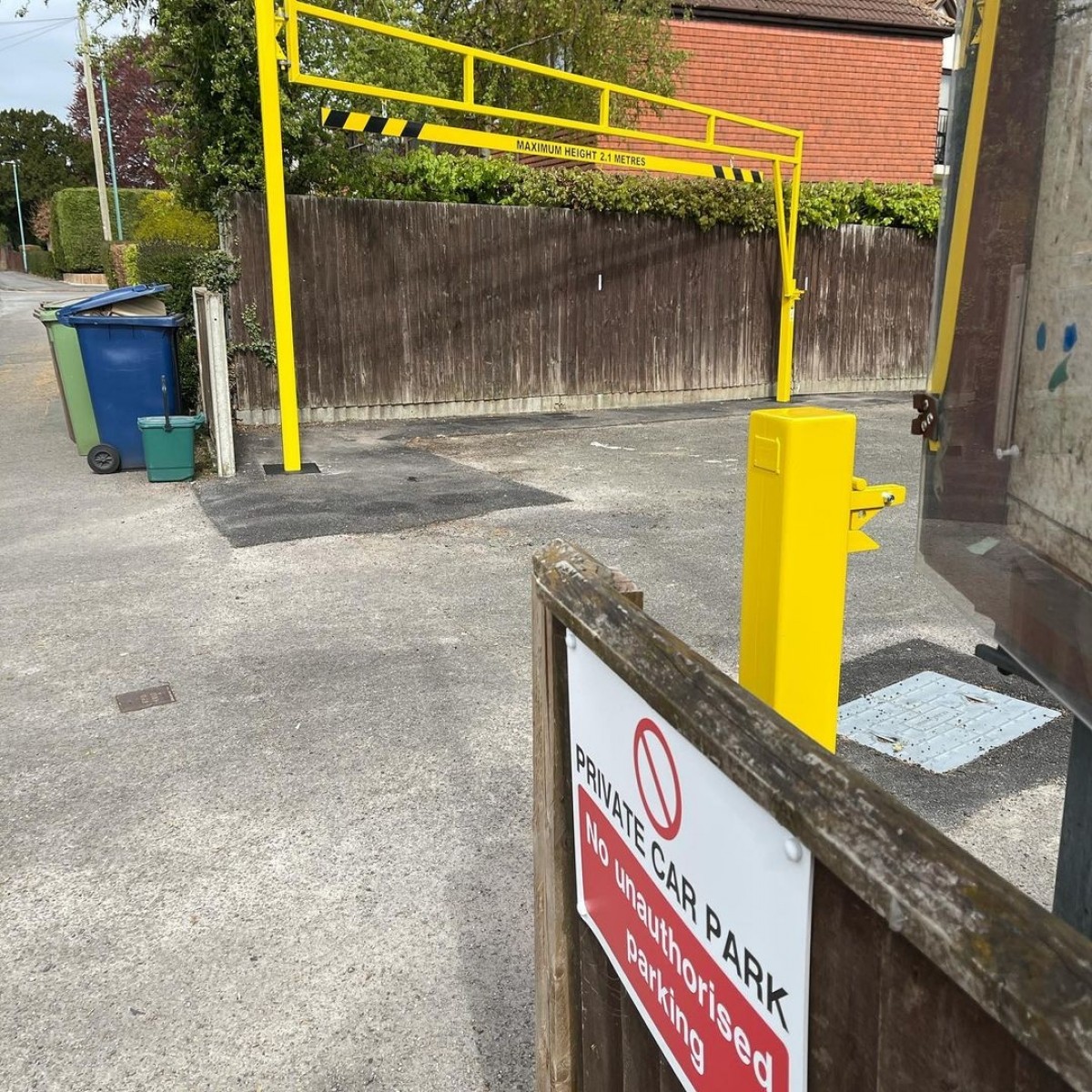

An ideal solution for the prevention of access to unauthorised areas such as staff or public car parks . Complete with a low level locking facility the single gate gives the option to allow larger vehicles through when required. Its extended latch facility enables all users to comfortably operate the barrier without difficulty.
The barrier uprights are manufactured from 100 x 100 steel box section and can be surface mounted (bolt down) or sunken fixture (concrete in).
Our heavy duty design is available from 3 to 6 metres and can be manufactured to suit specific size requirements. For larger sizes please see our double leaf height restrictor.
As standard the SB23H barrier is manufactured with a height restriction of 2.1M and can be galvanised or powder coated. For any other height or colour requirement or if you require your barrier a bespoke colour please contact our sales team on 01889 577347.
We offer installation on this product contact us for a quote !
Specfication
- Hinge Post Below Ground - 1000mm
- Latch & Latch Back Post Below Ground - 500mm
- Width - 3-6m (See double leaf height restrictor for larger spans)
- Hanging Post - 100 x 100mm Box Section

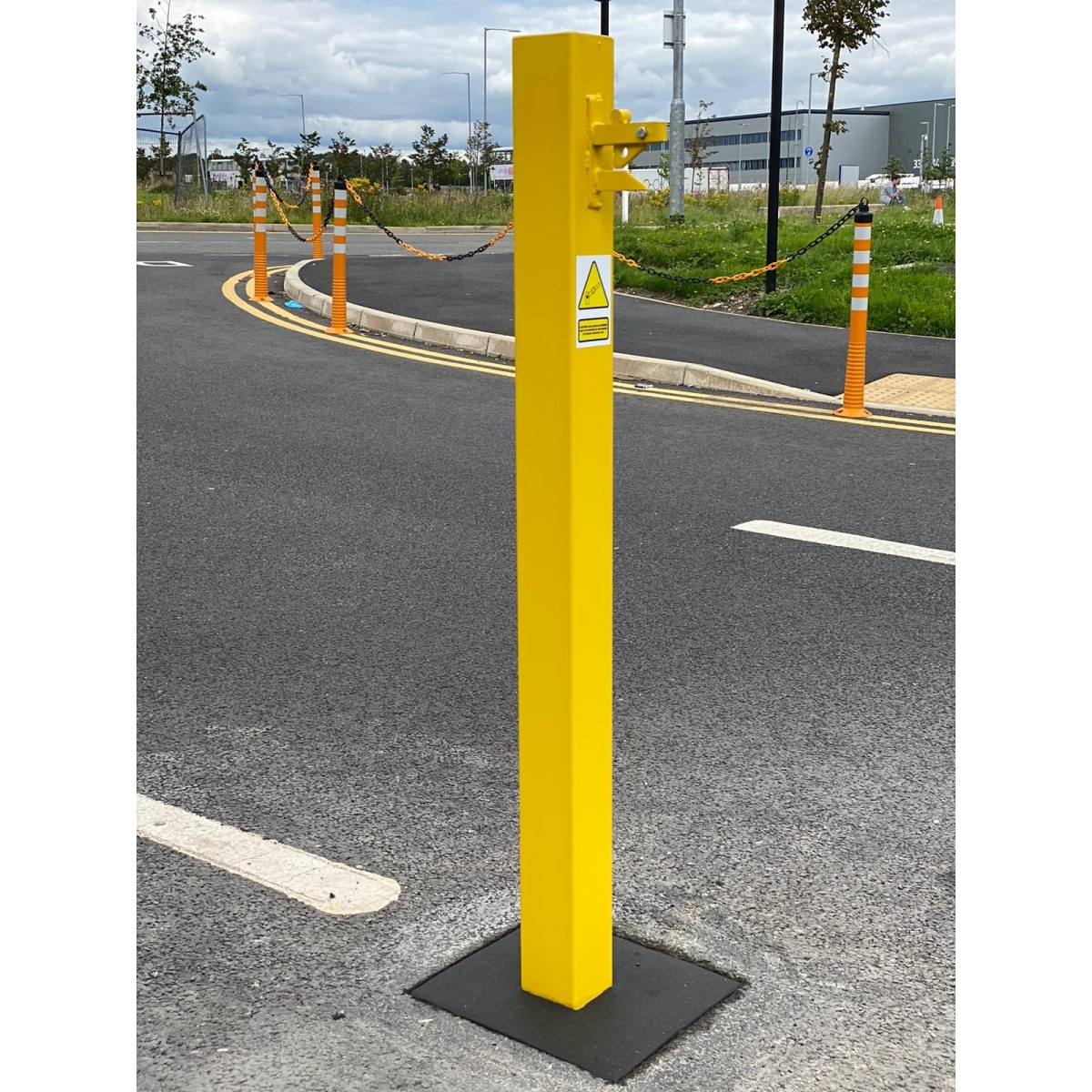

- Latching Post - 100 x 100mm Box Section
- Bolt holes are 16mm Dia (Fixings not supplied)
- 180 degree opening, dependent on hinge post position
Made to Order
7-14 Working days
Please note: Double finish (Galvanise and powder coat) will increase lead time up to 5 working days
Warranty Information
This product comes with 1 year warranty as standard.
