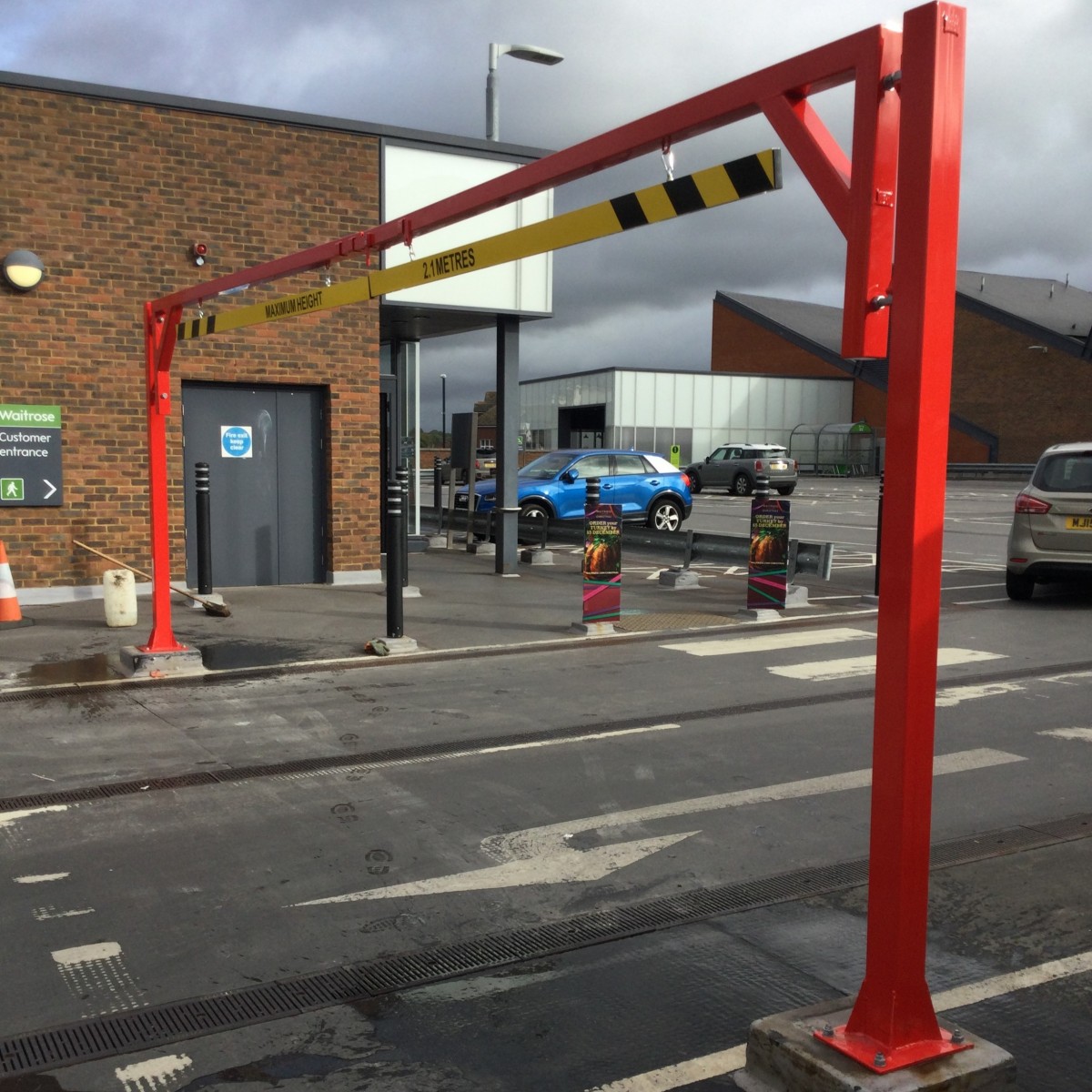

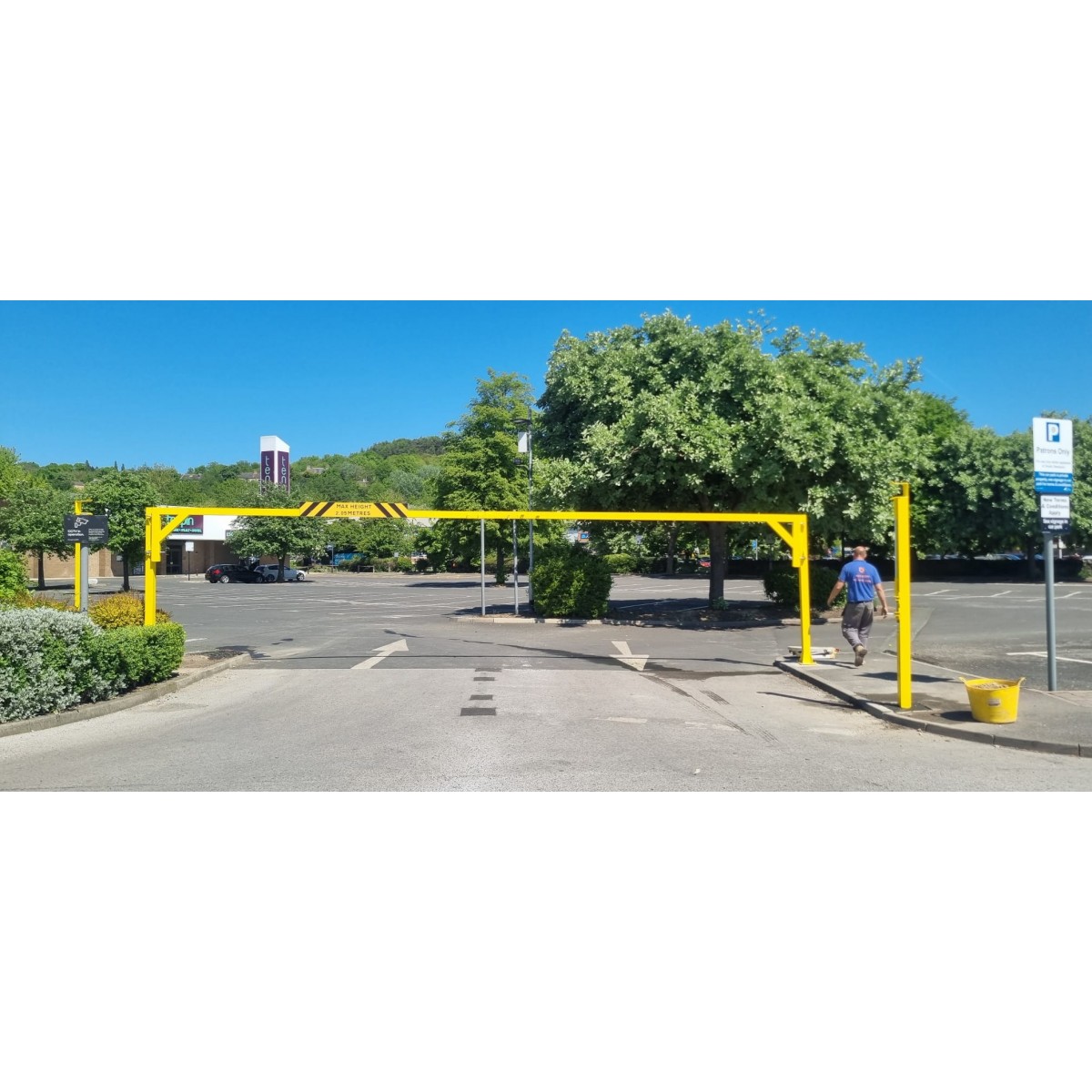

Opening Height Restriction Barrier 6-12 Metre - Heavy Duty

The SB.23E is a reliable and robust height restriction barrier. An ideal solution to prevent unauthorised access to higher vehicles to areas such as car parks, shopping centres, recreational grounds or similar.

Our double leaf barriers feature a heavy duty sliding latch facility, centrally positioned to secure both gates in the closed position, completed with a padlocking facility this enables users to secure the gate locked with their chosen padlock.

Our gates are all supplied with galvanised heavy duty adjustable eyebolts. Enabling adjustment at the installation stage for the perfect alignment.

We offer both sunken (concrete in) and surface mounted (bolt down) fixtures to suit all requirements however, we recommend concreting in for the most secure solution.

Gates can be secured in the open position with the additional purchase of latch back posts. These are manufactured with a self-locking catch facility, stopping gates from bouncing back out of the latch back post and the additional convenience of knowing the barrier is secured without manually holding in place. These are also complete with a padlock facility, in the event that the gates need to be locked in the open position.

Please note, latch back posts will be manufactured to suit the same fixture as the gate (concrete in or bolt down)

All barriers can be finished either powder coated, galvanised or double finish (galvanised & powder coated)

 Please be advised, as this product is made to order you may be required to confirm sizing before manufacture can commence

Specification

* Hinge Post 100 x 100mm Box Section

* Latch Back Post 100 x 100mm Box Section

* Barrier 100 x 60 x 3mm Box Section

* Concrete In - 760mm Below Ground

* Bolt Down - Holes are 18mm dia (fixings not supplied)

* Central sliding latch, padlock facility

*Supplied with galvanised adjustable eyebolts

* Gate has 180 degree opening, depending on hinge post post positioning

*Other powder coating colours available on request

* If ordering signage height chosen will be specified eg. 2.1 Metres selected, signage will read "Maximum Height 2.1 Metres"

Delivery - Made to order

Powder Coated Only 7-14 working days

Galvanised only 7-14 working days

Double Finish (Galvanised & Powder Coated) 14-21 working days

Warranty Information

This product comes with 1 year warranty as standard.
