Fixed Height Restriction Barrier

Ex. VAT: £719.98 Inc. VAT: £863.98

Quick Overview

Permanent Vehicle Height Restriction Barriers – 3m to 10m Wide

Stopem fixed height restriction barriers provide a strong and permanent solution for controlling vehicle access where taller vehicles need to be prevented from entering a site.

Manufactured from heavy-duty steel box section, our SB.23F fixed height restriction barriers are available in a range of access widths from 3 metres to 10 metres. Each barrier can be manufactured to suit your required width and vehicle height restriction, making them suitable for a wide range of commercial, industrial, car park and private access applications.

Whether you need to restrict access to a car park, protect an underground entrance or prevent high-sided vehicles from entering a restricted area, our fixed height barriers provide a robust and highly visible access control solution.

Need help choosing the right barrier? Contact our team for advice or request a quotation.

→ Click Here to read more

Barrier width & Finish *

Choose your height (from floor to underside of top bar or nudge bar) *

Fixing Option *

Colour *

Signage (Recommended) *

* Required Fields

Ex. VAT: £719.98 Inc. VAT: £863.98

Qty:

-OR-

Be the first to review this product

Details

Fixed Height Restriction Barrier Sizes

Our fixed height restriction barriers are available in widths from 3 metres to 11 metres, providing solutions for both standard vehicle entrances and wider commercial and industrial access points.

Available widths: 3m, 4m, 5m, 6m, 7m, 8m, 9m, 10m and 11m.

All barriers are manufactured from 100mm steel square box section and can be supplied with a choice of height restriction and finish options.

For the larger 9m and over barriers, a sunken/concrete-in installation is recommended due to the size and span of the barrier.

Height Restriction Options

Our fixed height restriction barriers are available with the following clearance heights, measured from ground level to the underside of the top bar or nudge bar:

Available restriction heights:

1.9m | 2.0m | 2.1m | 2.2m | 2.3m

When maximum height signage is selected, the sign will display the height restriction chosen for the barrier.

Construction & Finish

Stopem fixed height restriction barriers are manufactured from 100mm steel square box section, providing a robust and durable structure designed for permanent installation.

The barriers are manufactured to order and can be supplied in a range of finishes to suit the installation environment.

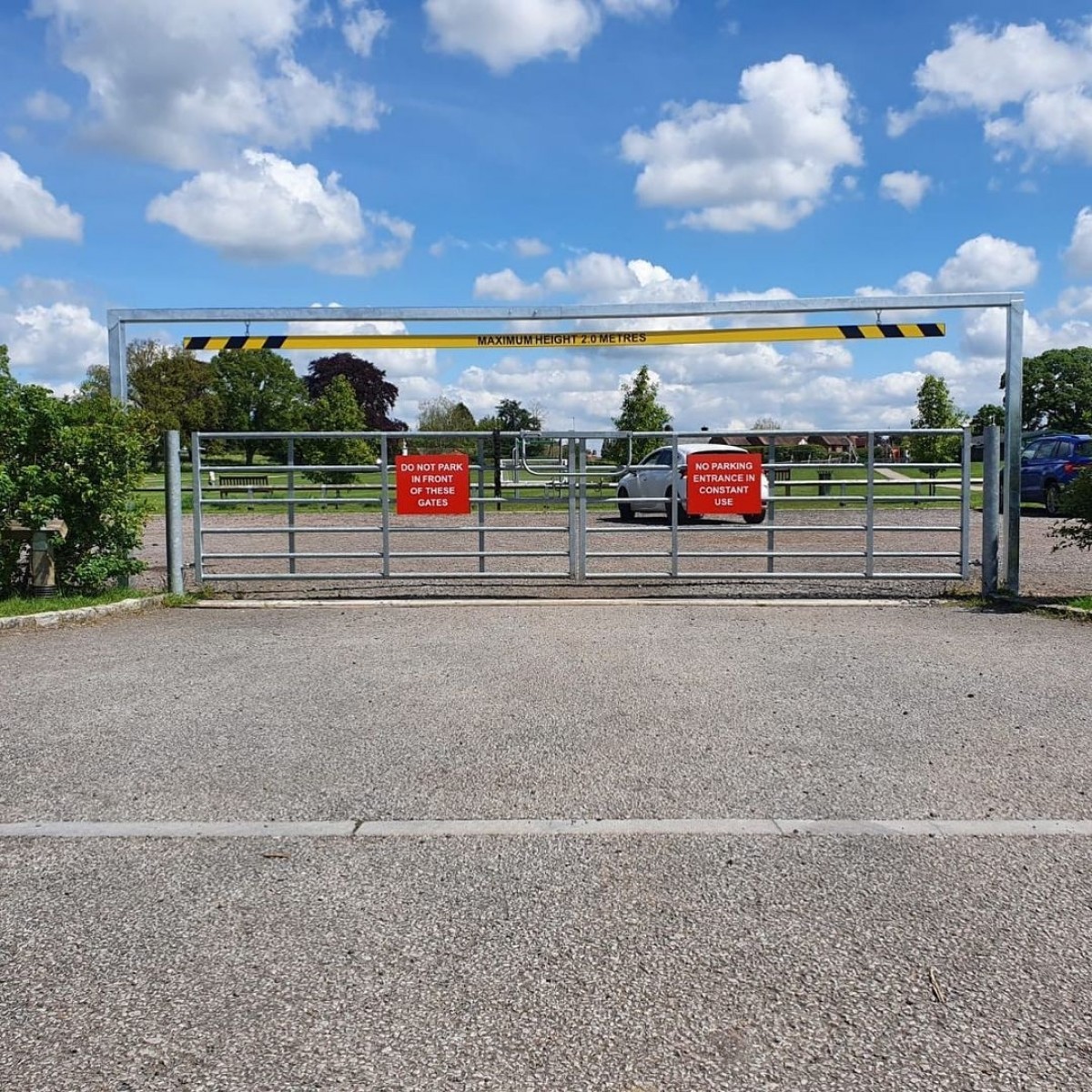

Galvanised Steel

Galvanising provides a protective coating against corrosion and is an excellent option for barriers installed outdoors or in exposed environments.

Powder Coated

Powder coating provides a durable coloured finish and allows the barrier to stand out, or matched to your site or be matched to company colours.

Galvanised & Powder Coated

For installations where additional corrosion protection is required alongside a coloured finish, the barrier can be both galvanised and powder coated.

If you are unsure which finish is most suitable for your installation, our team can advise you based on the location and environment.

Maximum Height Signage & Nudge Bars

Clear signage helps drivers identify the maximum vehicle height permitted through the entrance before reaching the restriction.

Maximum height signage can be supplied with our fixed height restriction barriers and can display the specified restriction height, such as 1.9m, 2.0m, 2.1m, 2.2m or 2.3m.

Nudge Bars

Nudge bars can also be supplied on selected barrier sizes. These provide an additional visual warning to approaching drivers and can help alert drivers to the overhead restriction before their vehicle reaches the main barrier.

For larger access widths, the nudge bar arrangement can vary according to the barrier specification.

If you require maximum height signage or a nudge bar with your fixed height restriction barrier, please specify this when requesting your quotation.

Where Are Fixed Height Restriction Barriers Used?

Fixed height restriction barriers are used wherever vehicle access needs to remain available while preventing vehicles above a specified height from entering.

Typical applications include:

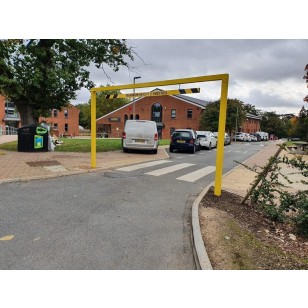

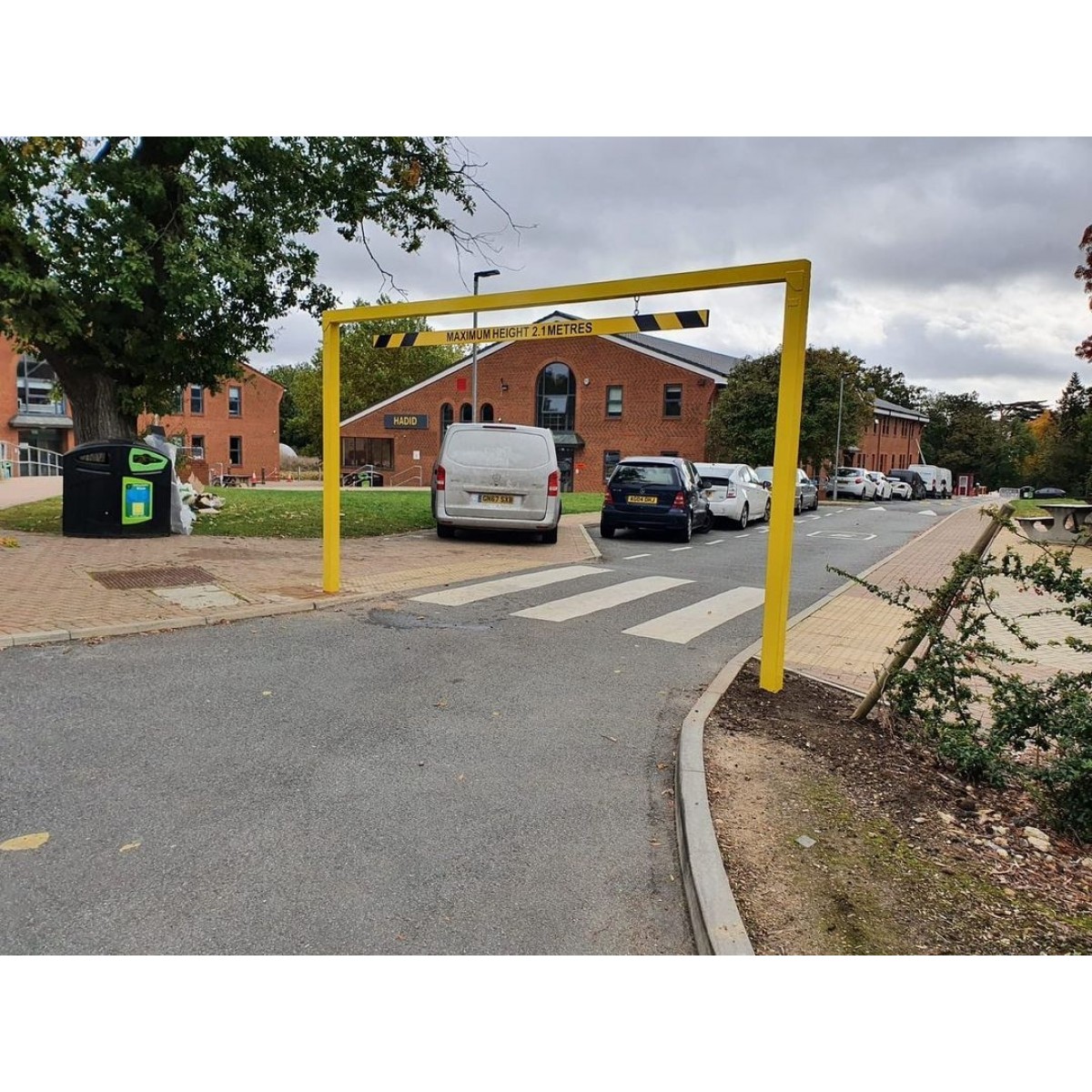

Car parks – preventing high-sided vehicles and unauthorised large vehicles from entering restricted parking areas.
Underground and covered car parks – protecting entrances where there is limited overhead clearance.

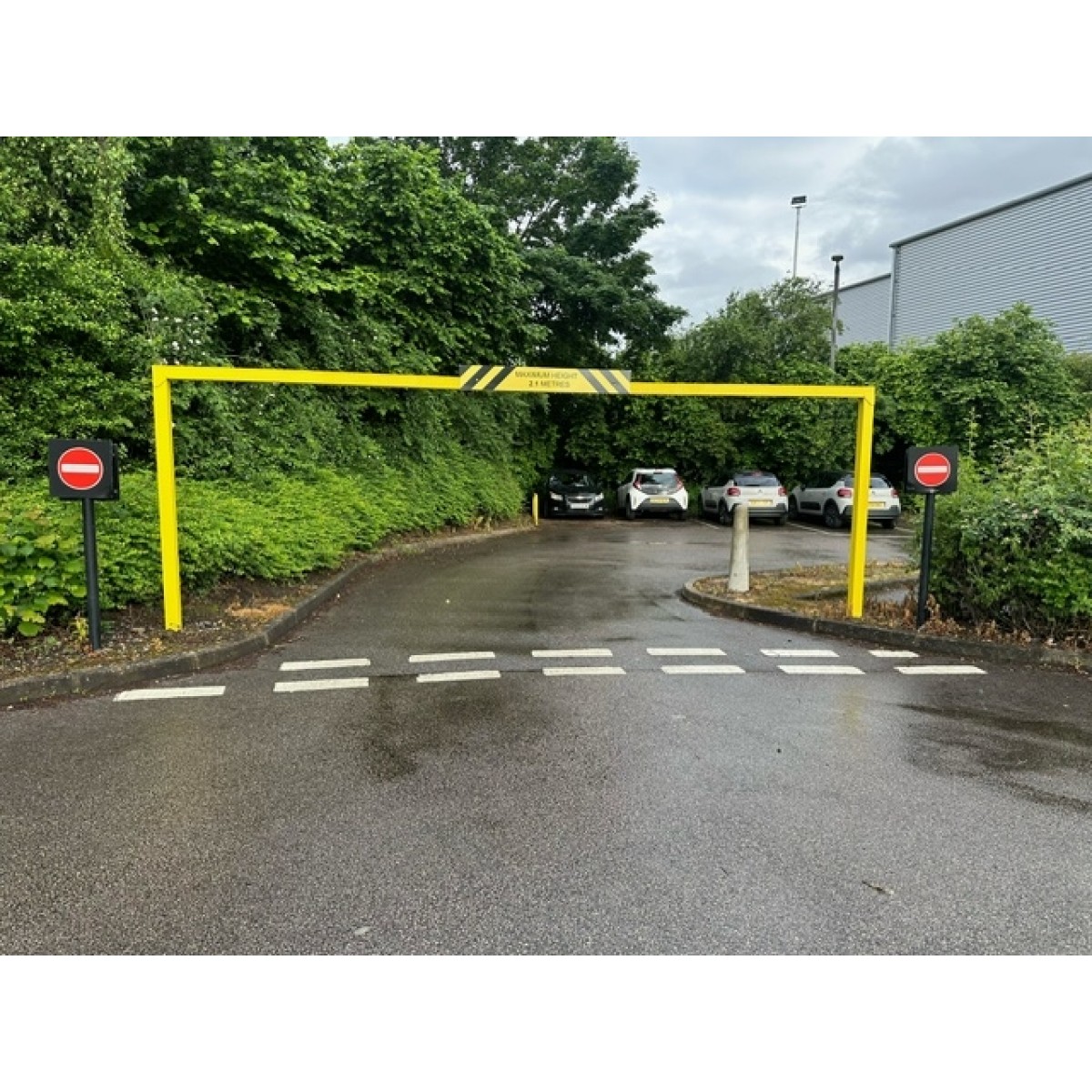

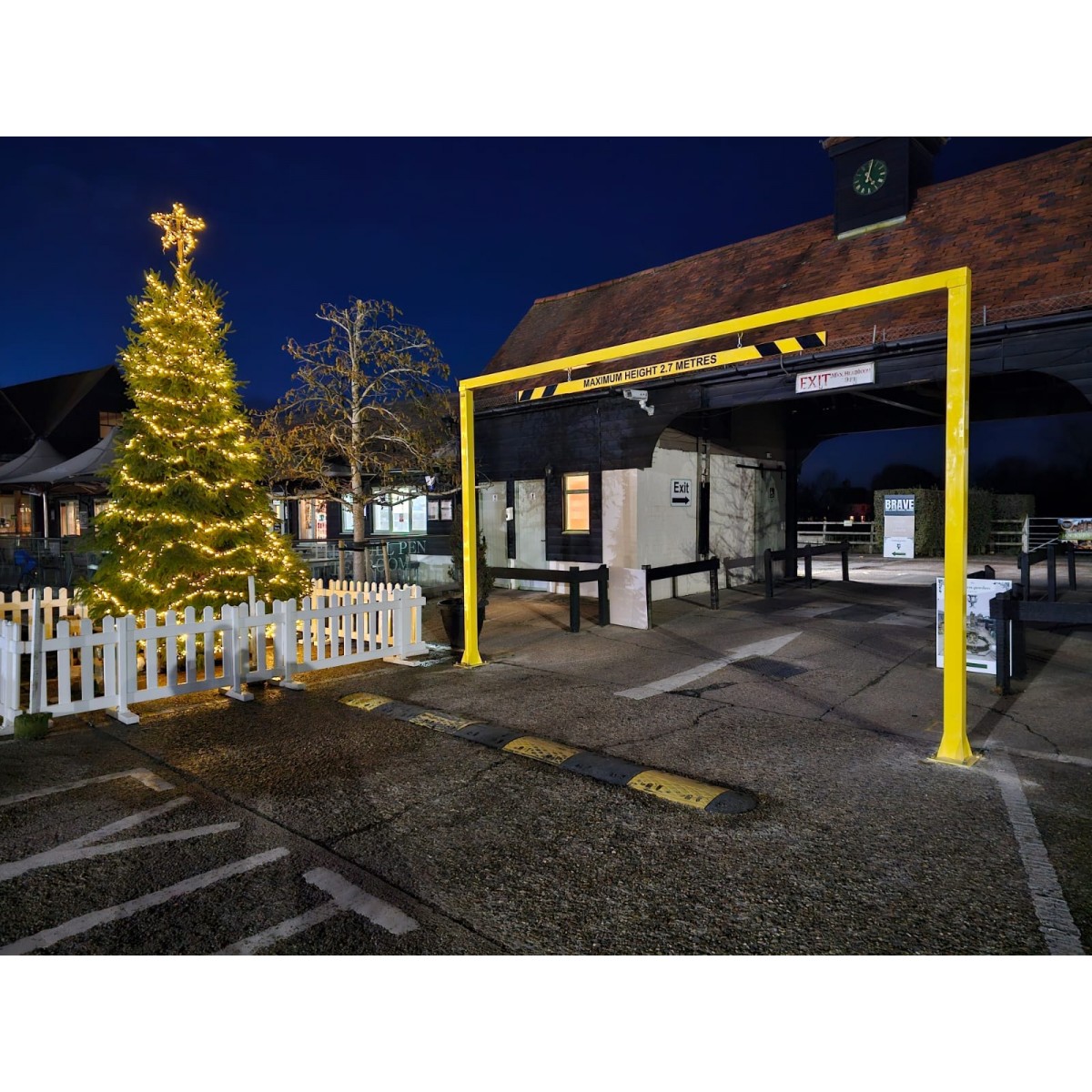

Commercial premises – controlling vehicle access to offices, retail premises and commercial developments.
Industrial sites – restricting access to areas where larger vehicles are not permitted.
Warehouses and distribution centres – controlling access to loading and operational areas.

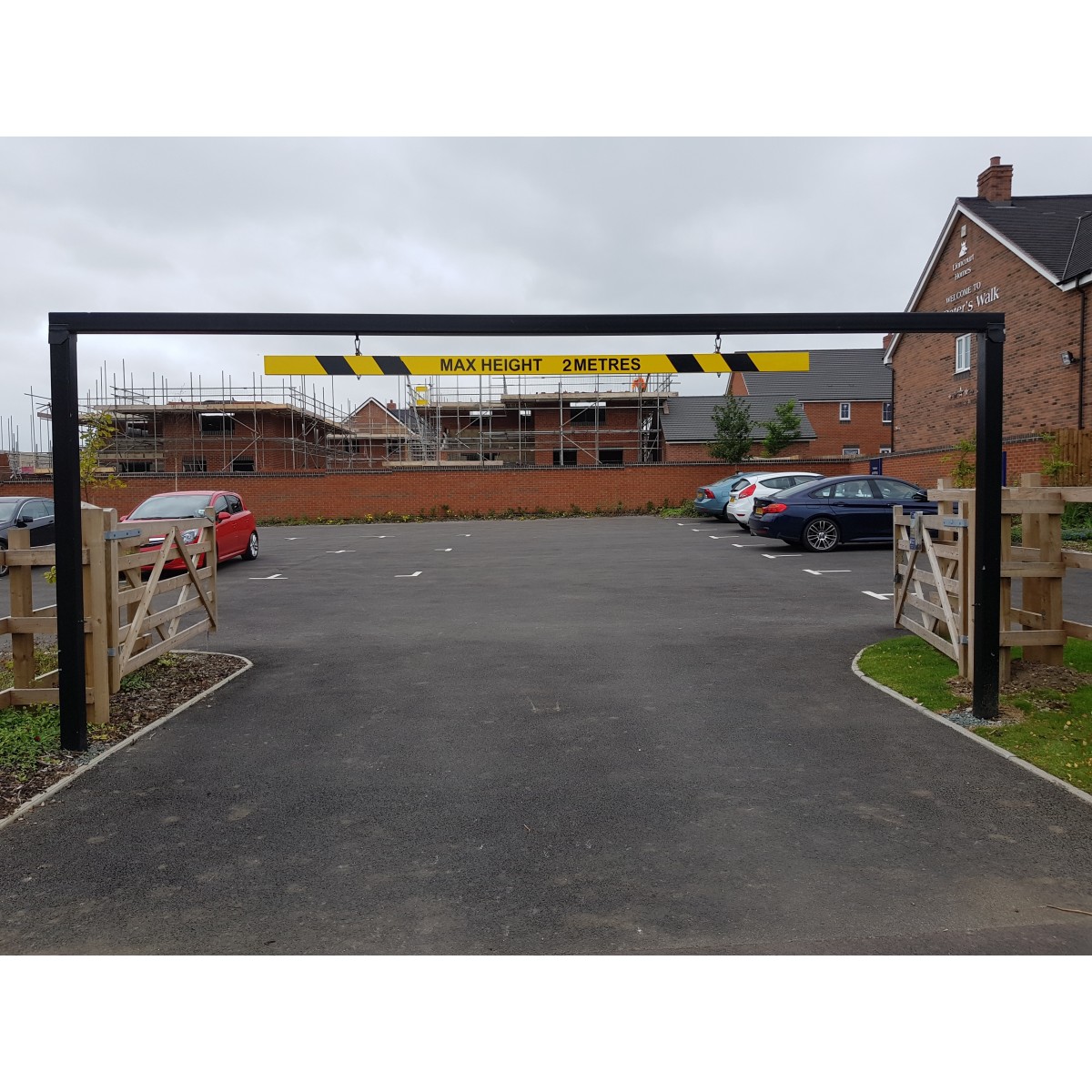

Private roads and residential developments – restricting access to larger vehicles where required.

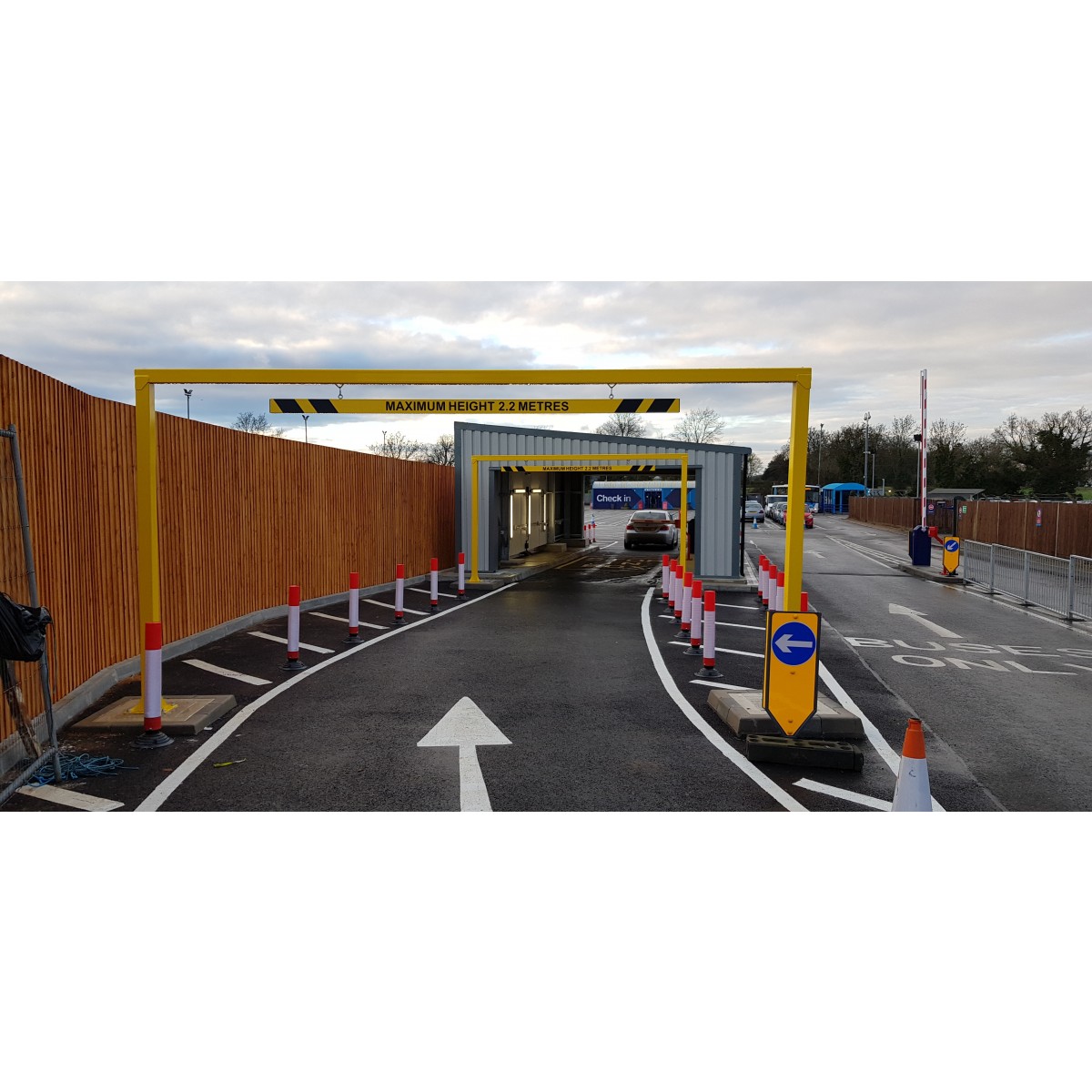

Retail parks and service areas – preventing unsuitable vehicles from accessing restricted areas.
Service yards and loading areas – controlling access where vehicle dimensions need to be limited.

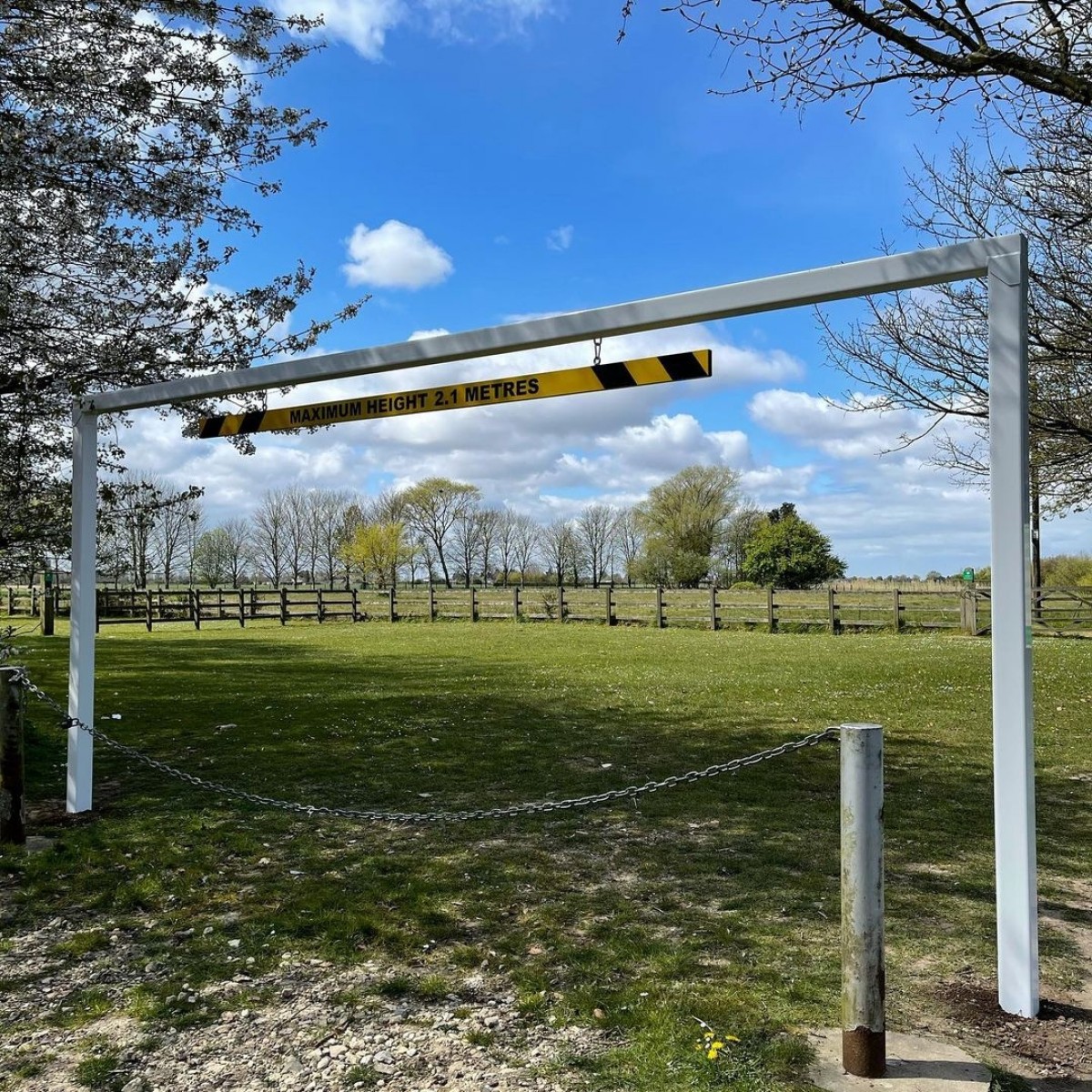

Private and managed sites – providing a permanent physical height restriction where access needs to be controlled.

The barrier can be specified with the appropriate restriction height for the vehicles that need to access the site.

Installation

Stopem fixed height restriction barriers can be supplied for installation using the appropriate fixing method for the barrier size and site conditions.

Surface-Mounted Installation

Where suitable, the barrier posts can be surface mounted onto an existing concrete foundation using mechanical fixings.

This can be an effective option where a suitable concrete surface already exists and excavation is not required.

Concrete-In / Sunken Installation

For a more permanent installation, the barrier posts can be installed below ground and concreted into position.

We recommend concrete in fixture for the most secure solution.

Nationwide Installation

Stopem can provide installation services for fixed height restriction barriers across the UK.

Our installation team can install the barrier and associated signage where required, helping ensure the equipment is correctly positioned and securely installed.

Where the installation involves excavation, customers should ensure that underground services have been identified before works commence.

If you are unsure which installation method is appropriate for your site, our team can advise you when preparing your quotation.

Why Choose Stopem?

Stopem are one of the UK's leading manufacturers of traffic control and parking equipment. Our fixed height restriction barriers are manufactured to order in the UK, allowing us to offer a choice of barrier widths, height restrictions, finishes and installation options to suit individual site requirements.
